Writing the Cyclone Scheme Compiler (Revision 1)
by Justin Ethier
This write-up is an attempt to provide a constructive background on the various components of Cyclone and how they were written. It is a revision of the original write-up, written over a year ago in August 2015, when the compiler was self hosting but before the new garbage collector was written. So much time has passed that I thought it would be worthwhile to provide a brain dump of sort for everything that has happened in the last year and half.
Before we get started, I want to say Thank You to all of the contributors to the Scheme community. Cyclone is based on the community's latest revision of the Scheme language and wherever possible existing code was reused or repurposed for this project, instead of starting from scratch. At the end of this document is a list of helpful online resources. Without high quality Scheme resources like these the Cyclone project would not have been possible.
In addition, developing Husk Scheme helped me gather much of the knowledge that would later be used to create Cyclone. In fact the primary motivation in building Cyclone was to go a step further and understand how to build a full, free-standing Scheme system. At this point Cyclone has eclipsed the speed and functionality of Husk and it is not clear if Husk will receive much more than bug fixes going forward. Maybe if there is an interest from the community some of this work can be ported back to that project.
Table of Contents
- Overview
- Source-to-Source Transformations
- C Back-End
- Garbage Collector
- C Runtime
- Native Thread Support
- Reader
- Interpreter
- Scheme Standards
- Future
- Conclusion
- References
Overview
Cyclone has a similar architecture to other modern compilers:
First, an input file containing Scheme code is received on the command line and loaded into an abstract syntax tree (AST) by Cyclone's parser. From there a series of source-to-source transformations are performed on the AST to expand macros, perform optimizations, and make the code easier to compile to C. These intermediate representations (IR) can be printed out in a readable format to aid debugging. The final AST is then output as a .c file and the C compiler is invoked to create the final executable or object file.
The code is represented internally as an AST of regular Scheme objects. Since Scheme represents both code and data using S-expressions, our compiler does not (in general) have to use custom abstract data types to store the code as would be the case with many other languages.
Source-to-Source Transformations
Overview
My primary inspiration for Cyclone was Marc Feeley's The 90 minute Scheme to C compiler (also video and code). Over the course of 90 minutes, Feeley demonstrates how to compile Scheme to C code using source-to-source transformations, including closure and continuation-passing-style (CPS) conversions.
As outlined in the presentation, some of the difficulties in compiling to C are:
Scheme has, and C does not have
- tail-calls a.k.a. tail-recursion optimization
- first-class continuations
- closures of indefinite extent
- automatic memory management i.e. garbage collection (GC)
Implications
- cannot translate (all) Scheme calls into C calls
- have to implement continuations
- have to implement closures
- have to organize things to allow GC
The rest is easy!
To overcome these difficulties a series of source-to-source transformations are used to remove powerful features not provided by C, add constructs required by the C code, and restructure/relabel the code in preparation for generating C. The final code may be compiled direcly to C. Cyclone also includes many other intermediate transformations, including:
- Macro expansion
- Processing of globals
- Alpha conversion
- CPS conversion
- Closure conversion
The 90-minute compiler ultimately compiles the code down to a single function and uses jumps to support continuations. This is a bit too limiting for a production compiler, so that part was not used.
Basic Pattern of Many Small Passes
To make Cyclone easier to maintain a separate pass is made for each transformation. This allows Cyclone's code to be as simple as possible and minimizes dependencies so there is less chance of changes to one transformation breaking the code for another.
Most of the transformations follow a similar pattern of recursively examining an expression. This is efficient as long as each sub-expression is only visited a single time. Here is a short example that searches for free variables. The point is not to show exactly what is going on here, but rather to present the pattern used by each of the transformations:
(define (search exp)
(cond
((const? exp) '())
((prim? exp) '())
((quote? exp) '())
((ref? exp) (if bound-only? '() (list exp)))
((lambda? exp)
(difference (reduce union (map search (lambda->exp exp)) '())
(lambda-formals->list exp)))
((if-syntax? exp) (union (search (if->condition exp))
(union (search (if->then exp))
(search (if->else exp)))))
((define? exp) (union (list (define->var exp))
(search (define->exp exp))))
((define-c? exp) (list (define->var exp)))
((set!? exp) (union (list (set!->var exp))
(search (set!->exp exp))))
((app? exp) (reduce union (map search exp) '()))
(else (error "unknown expression: " exp))))
TODO: mention nanopass, which seems to be a better approach but is R6RS so not really an option for this project :(
Macro Expansion
Macro expansion is one of the first transformations. Any macros the compiler knows about are loaded as functions into a macro environment, and a single pass is made over the code. When the compiler finds a macro the code is expanded by calling the macro. The compiler then inspects the resulting code again in case the macro expanded into another macro.
At the lowest level, Cyclone's explicit renaming (ER) macros provide a simple, low-level macro system that does not require much more than eval. Many ER macros from Chibi Scheme are used to implement the built-in macros in Cyclone.
Cyclone also supports the high-level syntax-rules system from the Scheme reports. Syntax rules is implemented as a huge ER macro ported from Chibi Scheme.
As a simple example the let macro below:
(let ((square (lambda (x) (* x x))))
(write (+ (square 10) 1)))
is expanded to:
(((lambda (square) (write (+ (square 10) 1)))
(lambda (x) (* x x))))
CPS Conversion
The conversion to continuation passing style (CPS) makes continuations explicit in the compiled code. This is a critical step to make the Scheme code simple enough that it can be represented by C. As we will see later, the runtime's garbage collector also requires code in CPS form.
The basic idea is that each expression will produce a value that is consumed by the continuation of the expression. Continuations will be represented using functions. All of the code must be rewritten to accept a new continuation parameter k that will be called with the result of the expression. For example, considering the previous let example:
(((lambda (square) (write (+ (square 10) 1)))
(lambda (x) (* x x))))
the code in CPS form becomes:
((lambda (r)
((lambda (square)
(square
(lambda (r)
((lambda (r) (write r))
(+ r 1)))
10))
r))
(lambda (k x) (k (* x x))))
CPS Optimizations
CPS conversion generates too much code and is inefficient for functions such as primitives that can return a result directly instead of calling into a continuation. So we need to optimize it to make the compiler practical. For example, the previous CPS code can be simplified to:
((lambda (k x) (k (* x x)))
(lambda (r)
(write (+ r 1)))
10)
One of the most effective optimizations is inlining of primitives. That is, some runtime functions can be called directly, so an enclosing lambda is not needed to evaluate them. This can greatly reduce the amount of generated code.
A contraction phase is also used to eliminate other unnecessary lambda's. There are a few other miscellaneous optimizations such as constant folding, which evaluates certain primitives at compile time if the parameters are constants.
To more efficiently identify optimizations Cyclone first makes a code pass to build up an hash table-based analysis database (DB) of various attributes. This is the same strategy employed by CHICKEN, although we record different attributes. The DB contains a table of records with an entry for each variable (indexed by symbol) and each function (indexed by unique ID).
In order to support the analysis DB a custom AST is used to represent functions during this phase, so that each one can be tagged with a unique identification number. After optimizations are complete, the lambdas are converted back into regular S-expressions.
Closure Conversion
TODO: briefly explain concept, flat closures (EG: vector)
TODO: need to wrap any mutable variables in cells before closure conversion can happen!
TODO: short example??
C Back-End
Code Generation
The compiler's code generation phase takes a single pass over the transformed Scheme code and outputs C code to the current output port (usually a .c file).
During this phase C code is sometimes saved for later use instead of being output directly. For example, when compiling a vector literal or a series of function arguments, the code is returned as a list of strings that separates variable declarations from C code in the "body" of the generated function.
The C code is carefully generated so that a Scheme library (.sld file) is compiled into a C module. Functions and variables exported from the library become C globals in the generated code.
Compilation
The C compiler is invoked to generate machine code for the Scheme module, and to also create an executable if a Scheme program is being compiled.
Garbage Collector
Background: Cheney on the MTA
A runtime based on Henry Baker's paper CONS Should Not CONS Its Arguments, Part II: Cheney on the M.T.A. was used as it allows for fast code that meets all of the fundamental requirements for a Scheme runtime: tail calls, garbage collection, and continuations.
Baker explains how it works:
We propose to compile Scheme by converting it into continuation-passing style (CPS), and then compile the resulting lambda expressions into individual C functions. Arguments are passed as normal C arguments, and function calls are normal C calls. Continuation closures and closure environments are passed as extra C arguments. Such a Scheme never executes a C return, so the stack will grow and grow ... eventually, the C "stack" will overflow the space assigned to it, and we must perform garbage collection.
Cheney on the M.T.A. uses a copying garbage collector. By using static roots and the current continuation closure, the GC is able to copy objects from the stack to a pre-allocated heap without having to know the format of C stack frames. To quote Baker:
the entire C "stack" is effectively the youngest generation in a generational garbage collector!
After GC is finished, the C stack pointer is reset using longjmp and the GC calls its continuation.
Here is a snippet demonstrating how C functions may be written using Baker's approach:
object Cyc_make_vector(object cont, object len, object fill) {
object v = NULL;
int i;
Cyc_check_int(len);
// Memory for vector can be allocated directly on the stack
v = alloca(sizeof(vector_type));
// Populate vector object
((vector)v)->tag = vector_tag;
...
// Check if GC is needed, then call into continuation with the new vector
return_closcall1(cont, v);
}
CHICKEN was the first Scheme compiler to use Baker's approach.
Cyclone's Hybrid Collector
Baker's technique uses a copying collector for both the minor and major generations of collection. One of the drawbacks of using a copying collector for major GC is that it relocates all the live objects during collection. This is problematic for supporting native threads because an object can be relocated at any time, invalidating any references to the object. To prevent this either all threads must be stopped while major GC is running or a read barrier must be used each time an object is accessed. Both options add a potentially significant overhead so instead Cyclone uses another type of collector for the second generation.
To that end, Cyclone supports uses a tri-color tracing collector based on the Doligez-Leroy-Gonthier (DLG) algorithm for major collections. The DLG algorithm was selected in part because many state-of-the-art collectors are built on top of DLG such as Chicken, Clover, and Schism. So this may allow for enhancements down the road.
Under Cyclone's runtime each thread contains its own stack that is used for private thread allocations. Thread stacks are managed independently using Cheney on the MTA. Each object that survives one of these minor collections is copied from the stack to a newly-allocated slot on the heap.
Heap objects are not relocated, making it easier for the runtime to support native threads. In addition major GC uses a collector thread that executes asynchronously so application threads can continue to run concurrently even during collections.

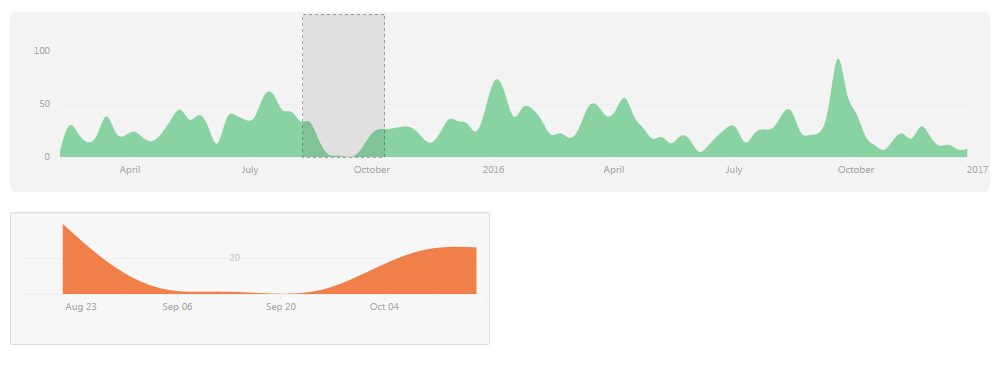

It took a long time to research and plan out all of this before it could be implemented. There was a noticeable lull in Github contributions during that time:
TODO: get rid of top graph
TODO: create a development section with 7 phases of compiler dev
Anyway, more details are available in a separate Garbage Collector document.
Heap Data Structures
Cyclone allocates heap data one page at a time. Each page is several megabytes in size and can store multiple Scheme objects. Cyclone will start with a small initial page size and gradually allocate larger pages using the Fibonnaci Sequence until reaching a maximum size.
Each page contains a linked list of free objects that is used to find the next available slot for an allocation. An entry on the free list will be split if it is larger than necessary for an allocation; the remaining space will remain in the free list for the next allocation.
Cyclone allocates smaller objects in fixed size heaps to minimize allocation time and prevent heap fragmentation. The runtime also remembers the last page of the heap that was able to allocate memory, greatly reducing allocation time on larger heaps.
The heap data structures and associated algorithms are based on code from Chibi scheme.
TODO: not really related to this paper, but can allocation speedup for Cyclone be ported back to Chibi? Should look into that
C Runtime
Overview
The C runtime provides supporting features to compiled Scheme programs including a set of primitive functions, call history, exception handling, and garbage collection.
An interesting observation from R. Kent Dybvig that I have tried to keep in mind is that performance optimizations in the runtime can be just as (if not more) important that higher level CPS optimizations:
My focus was instead on low-level details, like choosing efficient representations and generating good instruction sequences, and the compiler did include a peephole optimizer. High-level optimization is important, and we did plenty of that later, but low-level details often have more leverage in the sense that they typically affect a broader class of programs, if not all programs.
Data Types
Objects
Most Scheme data types are represented as heap/stack allocated objects that contain a tag to identify the object type. For example:
typedef struct {
gc_header_type hdr;
tag_type tag;
object pair_car;
object pair_cdr;
} pair_type;
The gc_header_type field contains marking information for the garbage collector.
Value Types
On the other hand, some data types can be represented using 30 bits or less and can be stored as value types. Cyclone uses this technique to store characters and integers. The nice thing about value types is they do not have to be garbage collected because no extra data is allocated for them.
Value types are stored using a technique from Lisp in Small Pieces. On many machines addresses are multiples of four, leaving the two least significant bits free. A brief explanation:
The reason why most pointers are aligned to at least 4 bytes is that most pointers are pointers to objects or basic types that themselves are aligned to at least 4 bytes. Things that have 4 byte alignment include (for most systems): int, float, bool (yes, really), any pointer type, and any basic type their size or larger.
Thread Data Parameter
At runtime Cyclone passes the current continuation, number of arguments, and a thread data parameter to each compiled C function. The continuation and arguments are used by the application code to call into its next function with a result. Thread data is a structure that contains all of the necessary information to perform collections, including:
- Thread state
- Stack boundaries
- Jump buffer
- List of mutated objects detected by the minor GC write barrier
- Major GC parameters - mark buffer, last read/write, etc (see next sections)
- Call history buffer
- Exception handler stack
Each thread has its own instance of the thread data structure and its own stack (assigned by the C runtime/compiler).
Call History
TODO: this is kind of a mess, need to rewrite this paragraph:
Each thread maintains a circular buffer of call history that is used to provide debug information in the event of an error. The buffer consists of an array of pointers-to-strings and the compiler generates calls to Cyc_st_add to perform runtime updates. This function needs to be fast as this function is called all the time! So it does the bare minimum and adds a call by updating the pointer at the current buffer index and incrementing that index.
Exception Handling
TODO: revise this paragraph?
A family of Cyc_rt_raise functions is provided to allow an exception to be raised for the current thread. These functions gather the required arguments and use apply to call the thread's current exception handler. The handler is part of the thread data parameter, so any functions that raise an exception must receive that parameter.
Native Thread Support
A multithreading API is provided based on SRFI 18. Most of the work to support multithreading is accomplished by the runtime and garbage collector.
Cyclone attempts to support multithreading in an efficient way that minimizes the amount of synchronization among threads. But objects are still copied during minor GC. In order for an object to be shared among threads the application must guarantee the object is no longer on the stack. This can be done by using synchronization primitives (such as a mutex) to coordinate access. It is also possible for application code to initiate a minor GC before an object is shared with other threads, to guarantee the object will henceforth not be relocated.
Reader
Cyclone uses a combined lexer / parser to read S-expressions. Input is processed one character at a time and either added to the current token or discarded if it is whitespace, part of a comment, etc. Once a terminating character is read the token is inspected and converted to an appropriate Scheme object. For example, a series of numbers may be converted into an integer.
The full implementation is written in Scheme and located in the (scheme read) library.
Interpreter
The eval function is written in Scheme, using code from the Metacircular Evaluator from SICP as a starting point.
The interpreter itself is straightforward but there is nice speed up to be had by separating syntactic analysis from execution. It would be interesting see what kind of performance improvements could be obtained by compiling to VM bytecodes or even using a JIT compiler.
The interpreter's full implementation is available in the (scheme eval) library, and the icyc executable is provided for convenient access to a REPL.
Scheme Standards
Cyclone targets the R7RS-small specification. This spec is relatively new and provides incremental improvements from the popular R5RS spec. Library support is the most important new feature but there are also exceptions, system interfaces, and a more consistent API.
Future
Some items to consider in the future are:
TODO: gambit GC (parallel with multiple collector threads)
-
Implement more of r7rs-large, have started on data structures
-
Implement more libraries (TODO: industria for r7rs??)
-
Way to support eggs or other existing libraries? Is that possible or even worth the effort?
-
Additional optimizations
Andrew Appel used a similar runtime for Standard ML of New Jersey which is referenced by Baker's paper. Appel's book Compiling with Continuations includes a section on how to implement compiler optimizations - many of which could still be applied to Cyclone.
Conclusion
TODO: this section is completely out of date, a better reference would be benchmark results from r7rs-benchmarks
From Feeley's presentation:
Performance is not so bad with NO optimizations (about 6 times slower than Gambit-C with full optimization)
Compared to a similar compiler (CHICKEN), Cyclone's performance is worse but also "not so bad":
$ time cyclone -d transforms.sld
real 0m6.802s
user 0m4.444s
sys 0m1.512s
$ time csc -t transforms.scm
real 0m1.084s
user 0m0.512s
sys 0m0.380s
Thanks for reading!
Want to give Cyclone a try? Install a copy using cyclone-bootstrap.
References
- CONS Should Not CONS Its Arguments, Part II: Cheney on the M.T.A., by Henry Baker
- CHICKEN Scheme
- CHICKEN Scheme - Internals
- Chibi Scheme
- Compiling Scheme to C with closure conversion, by Matt Might
- Lisp in Small Pieces, by Christian Queinnec
- R5RS Scheme Specification
- R7RS Scheme Specification
- Structure and Interpretation of Computer Programs, by Harold Abelson and Gerald Jay Sussman
- The 90 minute Scheme to C compiler, by Marc Feeley
- The Development of Chez Scheme, by R. Kent Dybvig
